How Do You Read Vernier Calipers Accurately?

Reading Vernier calipers accurately can seem challenging at first, but with a bit of practice and understanding, you’ll find it becomes second nature. This guide will walk you through the steps and tips to help you master the art of measuring with Vernier calipers effectively.

Understanding the Components of Vernier Calipers

To read Vernier calipers accurately, you must first understand their components. At a glance, these tools appear intricate, but each part serves a specific purpose.

The main scale and the Vernier scale work in tandem. The main scale provides the primary reading, while the Vernier scale allows for more precise measurements. Grasping the roles of these components is crucial for accurate reading.

Now, let’s delve deeper. The main scale is often marked in millimeters, while the Vernier scale typically provides readings in fractions of a millimeter. This combination allows you to achieve a level of precision that’s hard to match with other measuring tools.

Remember also the locking screw—a small yet vital feature. This screw holds the sliding jaw in place, ensuring that once you have your measurement, it remains unchanged while you take the reading.

Aligning the Caliper for Accurate Measurement

Proper alignment is key to accurate measurement with Vernier calipers. Begin by ensuring that the jaws of the caliper are clean and free from debris.

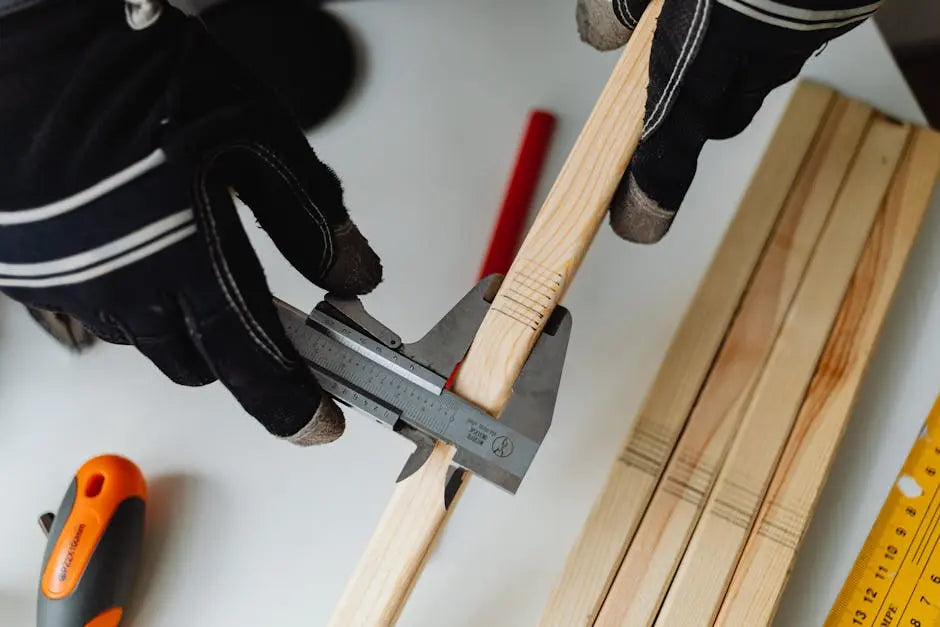

When measuring an object, gently close the jaws around it without applying excessive force. This helps to avoid any deformation that could lead to inaccurate readings.

The best practice is to hold the caliper perpendicular to the object being measured. This angle allows you to get the most accurate reading by avoiding parallax errors, which can occur when the measurement is viewed from an angle.

In practice, take a moment to double-check your alignment before taking the final measurement. If you’re unsure, it’s always better to measure again rather than risk inaccuracies.

Reading the Main Scale

Reading the main scale is your first step toward getting an accurate measurement with Vernier calipers. The main scale is usually marked clearly, allowing you to read it easily.

When you align the jaws of the caliper with the object, note the point where the zero mark of the Vernier scale meets the main scale. This reading will be your primary measurement.

Be mindful of the scale’s increments—familiarize yourself with the smallest unit marked on the main scale, as this forms the basis of your overall measurement.

For instance, if the zero mark of the Vernier scale is between the 5mm and 6mm mark on the main scale, your base measurement is 5mm. Having a clear understanding of this initial step is foundational for accurate readings.

Reading the Vernier Scale

Once you have your main scale reading, it’s time to tackle the Vernier scale. This scale is designed to provide much finer readings, resulting in precise measurements.

To read the Vernier scale accurately, look for the line on the Vernier scale that aligns perfectly with any line on the main scale. This coinciding point adds a fraction to your main scale measurement.

For instance, if the aligning line is the fourth line on the Vernier scale, this corresponds to an additional 0.04mm. Thus, the final measurement will be the sum of the main scale reading and this additional measurement.

Understanding how to interpret the Vernier scale can be tricky, but practice will make it easier. Regularly measuring various objects will help you gain confidence in this process.

Combining the Readings for Final Measurement

The final step in using Vernier calipers is to combine your readings from both the main scale and the Vernier scale.

Let’s say your main scale reading was 5mm, and the Vernier scale indicated an additional 0.04mm. The complete measurement would therefore be 5.04mm.

Always double-check your calculations to ensure accuracy. A small oversight at this final stage can lead to significant discrepancies, especially in precision measurements.

Additionally, it’s often helpful to record your measurements immediately after taking them to prevent the possibility of forgetting or miscalculating later on.

Wrapping Up the Measurement Journey

By following these simple steps and tips, you’ll be well on your way to measuring accurately with Vernier calipers in no time. Practice is key, so don’t hesitate to take some time to familiarize yourself with your tools. Soon, you’ll be reading measurements with confidence.
